Pair of Wedge Mounting Adapters (4mm thickness)

Name: Pair of Wedge Mounting Adapters (4mm thickness)
Brand: Novanta Photonics
Availability: InStock

Description

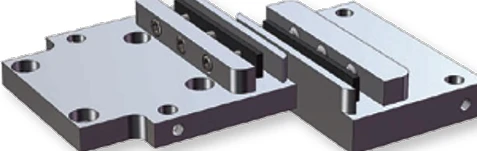

This precision-engineered pair of wedge mounting adapters is designed to accommodate glass wedges up to 4 mm thick, such as those offered by Novanta, enabling fine dispersion tuning in pulse compression systems. One adapter is equipped with an M4 threaded mount for direct attachment to pedestal posts, while the other features a 20 mm mounting grid compatible with M2 screws, making it ideal for integration with standard compact translation stages (available separately). The design ensures minimal spacing between the wedges, effectively reducing unwanted dispersive effects and enhancing overall system performance.

Specifications

Max Wedge Thickness:	4 mm
Number Of Wedges:	2
Accepts Glass Wedges And Optics Up To:	4 mm thickness
No Width Limitations:	Open frame design
Thread For Direct Pedestal Mounting (one Adapter):	M4

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Wedge mounting adapter pair

Accepts glass wedges and optics up to 4 mm thickness
No width limitations (open frame design)
Optimized design for mounting two wedges with minimal gap between each other and gentle glass clamping due to rubber sheets
M4 thread for direct pedestal mounting (one adapter). Mounting holes (M2-grid) for direct translation stage mounting (one adapter)
Translation stage with 6.5 mm travel can be ordered optional with an additional adapter for pedestal mounting below the translation stage

Applications

Laser optics
Metrology and microscopy
Scientific and industrial use cases
