T-OMG Miniature Motorized Gimbal Optic Mount with Built-in Controllers
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2016
Description
The T-OMG Series offers a revolutionary approach to optical mounting with its miniature motorized gimbal optic mounts. Designed to provide precise and seamless motion control, these mounts come equipped with built-in controllers, making them a standout choice for those seeking compact and efficient solutions. With a two-axis gimbal mount that offers a range of +/- 7 degrees, the T-OMG Series is engineered to hold 1" (25 mm) optics securely.
Weighing in at just 350 grams, the T-OMG is our most compact optical mount yet. Despite its small size, it packs a punch with its high-resolution, computer-controlled capabilities. This stand-alone unit requires only a 15 V power supply, ensuring ease of use and integration into various setups. The inclusion of two built-in controllers allows for independent manipulation of each axis of rotation, providing users with unparalleled control and precision.
One of the key features of the T-OMG Series is its ability to daisy-chain data and power with other T-Series products, enhancing flexibility and scalability in motion control applications. The design is not only functional but also compliant with RoHS and CE standards, ensuring quality and safety. Whether you're in need of a reliable optic mount for research, industrial, or any other application, the T-OMG Series is a robust solution that simplifies motion control with its innovative design and advanced technology.

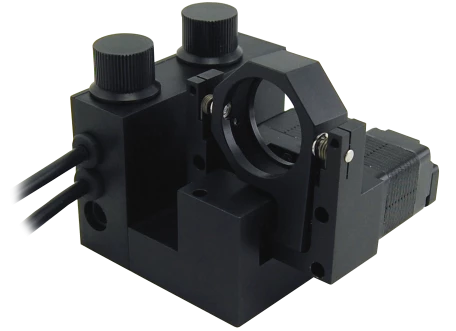

T-OMG Miniature Motorized Gimbal Optic Mount with Built-in Controllers
Specifications |
|
|---|---|
| Motorized Or Manual: | Motorized |
| Built-in Controller: | Yes |
| Mount Aperture Diameter: | 24 mm |
| Axes Of Motion: | Two |
| Full Range Of Motion: | 14 deg |
Features
- Two-Axis Gimbal Mount: Offers a +/- 7 degree range for precise motion control.
- Optic Compatibility: Designed to hold 1" (25 mm) optics securely.
- Integrated Controller: Features a built-in controller that supports daisy-chaining of data and power with other T-Series products.
- Compact Design: Our most compact optical mount, weighing only 350 grams, making it ideal for space-constrained applications.
- Communication Interface: Utilizes RS-232 with Zaber Binary protocol for efficient communication.
- Power Requirements: Operates with a 12-16 VDC power supply, using a 2.1 mm center positive power plug.
- High Precision: Motor steps per revolution are 200, with a default resolution of 1/64 of a step.
- Manual Control: Includes a potentiometer for easy manual adjustments.
- Mounting Interface: Equipped with an M6 threaded hole for optic post mounting and supports 1" or 25 mm optics.
- Environmental Compliance: RoHS and CE compliant, ensuring safety and environmental standards are met.
- Operating Temperature: Suitable for environments ranging from 0 to 50 degrees Celsius.
- LED Indicators: Bi-colour LED indicators for status monitoring.
- Precision Drive System: Utilizes a precision lead screw for accurate movements.
- Magnetic Hall Sensor: Provides limit or home sensing for reliable positioning.
- Stepper Motor: Features a two-phase stepper motor with a NEMA 08 frame size and 1.5 mH/phase inductance.
- Low Backlash: Azimuth axis backlash is < 0.005 degrees, and elevation axis backlash is < 0.0025 degrees.
- Speed Range: Azimuth axis speed ranges from 0.00054 deg/s to 11 deg/s, while elevation axis speed ranges from 0.00027 deg/s to 7 deg/s.
Applications
- Optical Beam Steering: Enables precise directional control of laser beams or optical signals.
- Automated Optical Alignment: Facilitates high-precision alignment tasks in photonics research.
- Laser Tuning Systems: Ideal for fine adjustment in wavelength tuning or coupling setups.
- Fiber Optic Communication: Supports component positioning within fiber alignment and testing systems.
- Laboratory Research: Essential for experimental setups requiring dynamic two-axis optic positioning.
Frequently Asked Questions
The OMG-T4A is a high resolution, computer-controlled, two-axis optic mount.
The OMG-T4A is our most compact optical mount weighing only 330 grams.
The two-axis gimbal mount has a range of +/- 7 degrees.
The OMG-T4A can hold 1" (25 mm) optics.
