Description

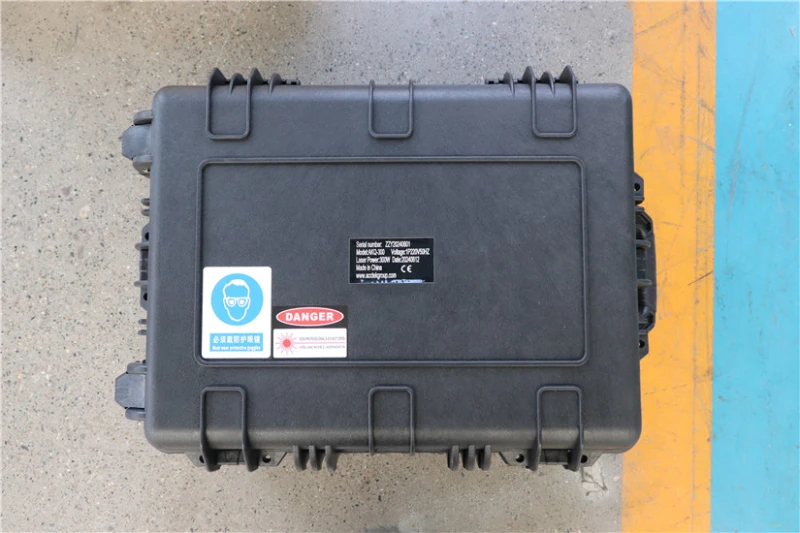

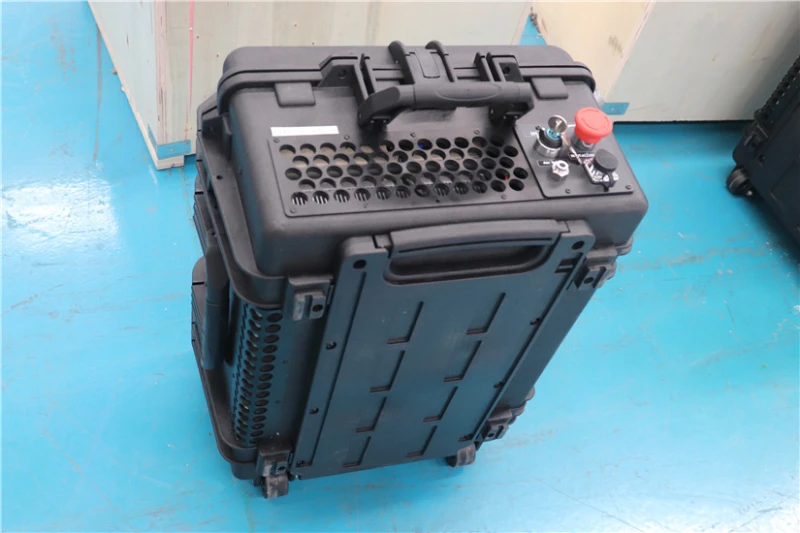

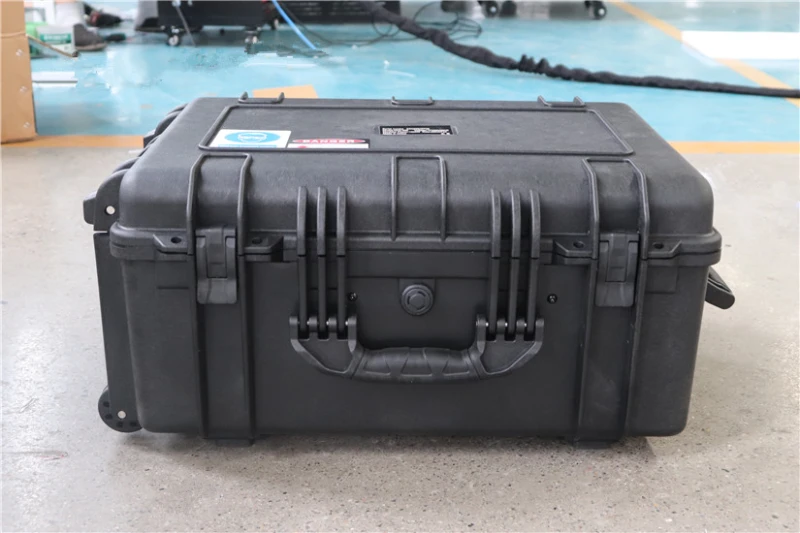

The luggage laser cleaning machine is a compact, portable laser cleaning solution designed in a trolley-style or suitcase-style format. It integrates all core components—including the laser generator, control system, and cooling unit—into a wheeled case, allowing for easy transport and quick deployment at job sites. The luggage laser cleaning machine is a perfect combination of mobility, efficiency, and simplicity, making it an excellent choice for maintenance teams, field technicians, and businesses seeking a ready-to-go solution for industrial cleaning tasks.

Luggage Laser Cleaning Machine

JINAN MAXCOOL SMART TECHNOLOGY CO.,LTD

Specifications

Materials: Steel, Iron, Aluminum, Ceramic, Plastic, Metal Alloys, Cast Iron
Application: Rust Removal, Paint Stripping, Corrosion Removal, Oxide Removal, Anodization Removal, Zinc Removal, Mold Cleaning, Degreasing, Pre-Adhesion Treatment, Stone Restoration
Laser Type: Fiber
Laser Output Power: 200 W
Laser Safety Class: Class 4
Wavelength: 1064 nm
Cable Length: 5 m
Laser Type: Pulse
Pulse Formation: MOPA
Average Power (W): 200W JPT
Laser Wavelength: 1064nm
Pulse Width (ns): 2-500ns
Ambient Temperature Range: 5-40℃
Fiber Length (m): 5m
Cooling Type: Air cooling
Input Power: Single Phase 220V, 50/60HZ
Power Adjustment Range (%): 0～100
Power Consumption (W): <=1500W
Machine Dimensions (mm3): About 617mm*469mm*291mm
Net Weight: 28kg

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High-Efficiency Cleaning: The MC-200 Fiber Laser Cleaning Machine effectively removes surface contaminants such as resin, paint, oil, stains, dirt, rust, and coatings from various materials.
  • Advanced Laser Technology: Equipped with a JPT 200W 5mj power laser generator, utilizing a pulse formation MOPA system with a central wavelength of 1064nm.
  • Portable and Customizable: Features a MAXCOOL portable customized clean gun and a dual-axis controller for precision and ease of use.
  • Reliable Cooling System: Air cooling ensures the machine remains efficient during prolonged use.
  • Comprehensive Warranty: Enjoy a three-year warranty for the entire machine and a two-year warranty for the laser generator, covering parts replacement (excluding human-induced damage).
  • Certified Quality: The MC-200 is certified with European CE and FDA standards, ensuring top-tier quality and safety.
  • Convenient Power Supply: Operates on a single-phase 220V, 50/60Hz power input, with a power consumption of ≤1500W.
  • Compact and Lightweight Design: With dimensions of approximately 617mm x 469mm x 291mm and a net weight of 28kg, it is easy to handle and transport.
  • Flexible Power Adjustment: Power adjustment range from 0 to 100%, allowing for precise control based on cleaning needs.
  • Quick Delivery: Expect delivery within 7-15 working days after deposit.
  • Robust Packaging: Delivered in a strong wooden case to ensure safe transportation, with a packing size of about 760mm x 560mm x 460mm and a packing weight of approximately 47kg.

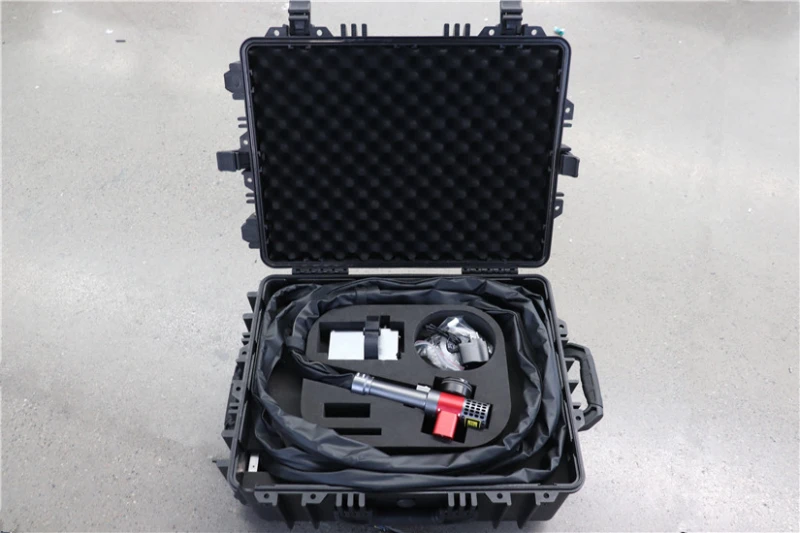

  • Comprehensive Accessories: Includes 5 extra protective lenses, 1 pair of goggles, and a 5m cable length for enhanced usability and protection.

Applications

  • Surface Cleaning: The MC-200 fiber laser cleaning machine is widely used for cleaning the surface of materials, effectively removing resin, paint, oil pollution, stains, dirt, rust, coatings, etc.
  • Material Restoration: Ideal for restoring metal surfaces by removing oxidation and rust without damaging the base material.
  • Pre-treatment for Welding: Cleans metal surfaces before welding to ensure high-quality welds.
  • Paint Removal: Efficiently removes old paint layers from metal surfaces without the use of chemicals.
  • Oil and Grease Removal: Cleans oil and grease from machinery parts to prevent contamination and ensure optimal operation.
  • Coating Removal: Removes coatings and surface treatments from metal parts, preparing them for re-coating or further processing.

Frequently Asked Questions

What is the MC-200 Fiber Laser Cleaning Machine used for?
The MC-200 Fiber Laser Cleaning Machine is widely used for cleaning the surface of materials, including removing resin, paint, oil pollution, stains, dirt, rust, and coatings.
What are the key features of the MC-200 Fiber Laser Cleaning Machine?
The key features include a MAXCOOL portable customized clean gun, a customized dual-axis controller, a JPT 200W 5mj power laser generator, air cooling, a central wavelength of 1064nm, 5 extra protective lenses, a pair of goggles, a 5m cable length, and a strong wooden case for packaging.
What certifications does the MC-200 Fiber Laser Cleaning Machine have?
The MC-200 Fiber Laser Cleaning Machine has Europe CE certifications and FDA certification.
What is the warranty period for the MC-200 Fiber Laser Cleaning Machine?
The warranty period is 3 years for the whole machine and 2 years for the laser generator, excluding human damage. Parts can be replaced during the warranty.
What are the technical specifications of the laser used in the MC-200?
The laser type is pulse with MOPA pulse formation, an average power of 200W, a central wavelength of 1064nm, a pulse width of 2-500ns, and a power adjustment range of 0-100%.
What is the delivery time for the MC-200 Fiber Laser Cleaning Machine?
The delivery time is 7-15 working days after receiving the deposit.
