SG-UVLED-2.0-UV Curing Chamber
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2025
Description

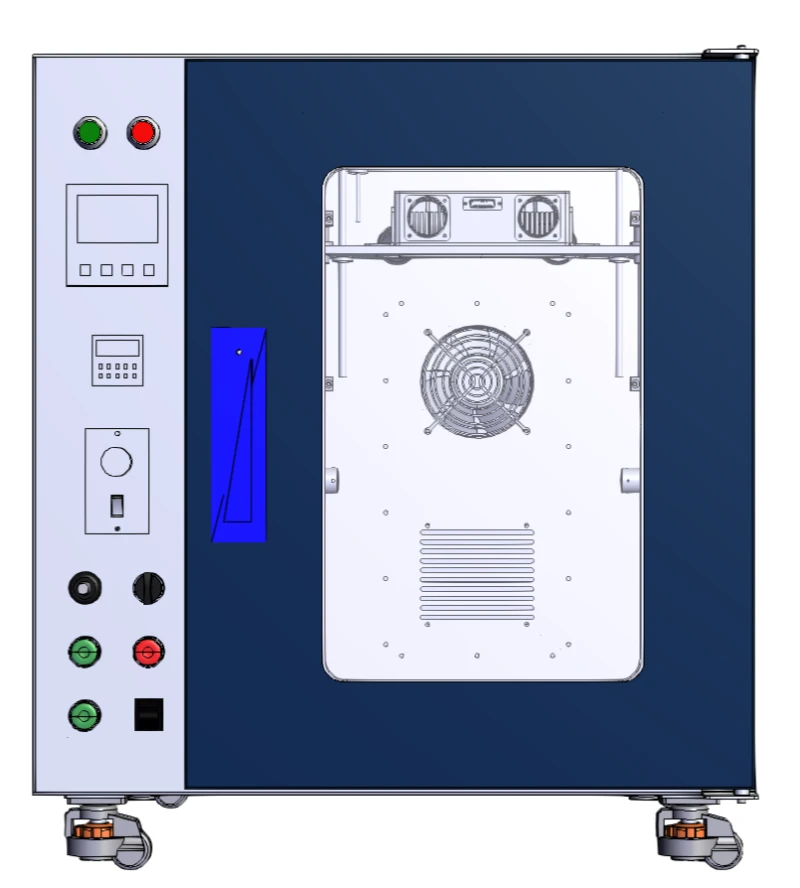

The LED UV Curing Chamber is designed for UV adhesive curing. The system includes a main chamber, UVLED control system, AI constant temperature control system, and air-cooled heat dissipation system. It is suitable for UV curing applications in fiber optic coils, printing industries, and electronics (e.g., PCB, displays).
SG-UVLED-2.0-UV Curing Chamber
Specifications |
|
|---|---|
| Dimensions: | L(790mm)*W(690mm)*H(760mm) mm |
| Weight: | ≤150 kg |
| Operating Noise: | ≤50 dB |
| Curing Method: | Cold light curing |
| Inner Diameter: | 15-320mm mm |
| Height: | 1-144mm mm |
| UVLED Specifications Dimensions: | 144mm*33mm mm |
| Wavelength: | 365 nm (customizable: 385/395/405 nm) nm |
| Max Power Consumption: | ≤450W(customizable) W |
| Voltage Range: | 15-100VDC DC |
| Irradiation Intensity: | Adjustable 10-500mW/cm² mW/cm² |
| Control Mode: | Compressor temperature control |
| Temperature Control Range: | 15–35°C (customizable temperature range) °C |
| Speed Adjustable: | 1-15r/min r/min |
| Peak Power: | Peak power ≤1.3 kW kW |
| Supply Voltage: | 220VAC 50-60HZ |
Features
Ø Compared to traditional mercury lamp curing, LED curing requires no preheating. Stable irradiation intensity is achieved immediately upon power-on, ensuring product consistency.
Ø Compared to traditional mercury lamp curing, LED curing produces no ozone during operation, making it environmentally friendly and safe for operators. It contains with RoHs and REACH regulations.
Ø AI intelligent calculation constant temperature control system maintains a stable temperature environment.
Ø Adjustable irradiation intensity and curing distance, rotatable curing manual/automatic mode switching, and customizable curing time.
Ø High energy efficiency, long lifespan, low maintenance, ergonomic design, and user-friendly operation.
Applications
It is suitable for UV curing applications in fiber optic coils, printing industries, and electronics (e.g., PCB, displays).
