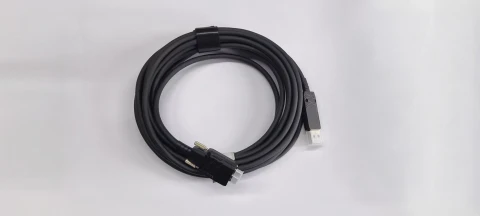

USB 3.2 Gen2 Active Optical Cable Type A to Micro B 10Gbps

Name: USB 3.2 Gen2 Active Optical Cable Type A to Micro B 10Gbps
Brand: Lucius
Price: 80.00 USD
Availability: InStock

Description

USB 3.0 A–MB Active Optical Cable – High-Speed 10 Gbps USB 3.2 Gen2 AOC

The USB 3.0 A–MB Active Optical Cable (AOC) from Lucius Technologies is engineered for high-speed, long-distance USB connectivity in demanding industrial and imaging environments. Combining copper for power delivery with optical fiber for data transmission, this hybrid cable delivers a robust USB 3.2 Gen2 1×2 bandwidth of up to 10 Gbps while maintaining signal integrity over distances far beyond conventional copper USB cables. It is ideal for connecting industrial cameras, high‑definition vision systems, and other bandwidth‑intensive USB devices where reliability, low latency, and electromagnetic immunity are critical.

Designed as a USB Type‑A to USB Micro‑B solution, this active optical cable supports backward compatibility with USB 2.0 High Speed (480 Mbps) at lengths up to 5 meters, enabling seamless integration with legacy equipment. With a supported power supply of up to 5 V / 0.9 A, the cable can power many bus‑powered peripherals directly, simplifying system design and reducing the need for external power adapters in typical USB applications. This makes it particularly suited for machine vision cameras, measurement instruments, and embedded devices where cable routing and power management are often constrained.

The mechanical design of the USB 3.0 A–MB AOC focuses on durability and flexibility. The compact housing (34.5 mm × 18.5 mm × 9 mm) and slim 4.8 mm outer diameter PVC jacket allow easy installation in tight spaces, cable carriers, and moving axes. A minimum bending radius of just 5 mm and verified performance under up to 20 million drag chain cycles support continuous dynamic motion in industrial automation, robotics, and inspection systems. With a tensile strength of 220 N on the cable and 100 N (≈45 lbs) on the connector housing, the assembly resists mechanical stress during installation and operation, reducing the risk of intermittent connections and cable failure.

To ensure stable high‑speed data transmission even in harsh EMC environments, the cable incorporates comprehensive EMI shielding and ESD protection. This shielding structure minimizes susceptibility to electromagnetic interference from motors, inverters, and other heavy industrial equipment, while ESD protection helps safeguard connected electronics against electrostatic discharges during handling and operation. Compared with conventional passive copper USB 3.0 cables, the active optical architecture significantly reduces signal attenuation over long distances and delivers a consistently low‑noise link that is essential for high‑resolution imaging, high‑frame‑rate acquisition, and reliable data logging.

The USB 3.0 A–MB AOC is specified for a broad operating temperature range from 0 to 50 °C and a storage range from −5 to 85 °C with humidity from 0 to 85% RH, making it suitable for typical indoor industrial, laboratory, and production environments. The cable meets ROHS environmental self‑declaration requirements and is available in lengths from 1 meter up to 40 meters, giving system designers the flexibility to bridge long distances between host PCs and remote USB endpoints without compromising data rate. Whether used in factory automation, quality inspection, medical imaging carts, or high‑end AV capture setups, this active optical cable provides a stable, high‑performance USB link tailored for continuous professional use.

Specifications

Type:	USB-A to USB-A
Version:	USB 3.2
Length:	40 m
Transfer Speed:	10 Gbps (USB 3.2)
Connector Material:	Unspecified
Certifications:	CE, RoHS
Tensile Strength:	220 N
Features:	EMI shielding, ESD protection
Drag Chain Durability:	Up to 20 million cycles
Supported Interfaces:	USB Type A to USB Micro B
Working Humidity:	0 to 85% RH
Working Temperature:	0 to 50 ℃
Storage Temperature:	-5 to 85 ℃
Environmental Certification:	RoHS (Self Declaration)
Tensile Strength Of The Case:	100 N (45 lbs)
Usable Length:	1–40 m
Shell Color:	Black
Case Size:	34.5 mm x 18.5 mm x 9 mm
Fire-Protection Rating:	VW-1
Cable Sheath Material:	PVC
Cable Color:	Black
Minimum Bending Radius:	5 mm
Cable Diameter:	4.8 ± 0.2 mm
Working Voltage (VBUS):	20 V max
Max Power Supply:	5 V / 0.9 A
USB2.0 Data Rate:	480 Mbps @ 5 m (HS)
USB Version / Bandwidth:	USB3.2 Gen2 1x2, 10 Gbps
Manufacturer Part Number (MPN):	Y100Y103-022005
FindLight SKU:	FL-24864

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

High-Speed USB 3.2 Gen2 Performance – 10 Gbps
Delivers up to 10 Gbps data bandwidth (USB 3.2 Gen2 1x2), ideal for high‑resolution industrial and HD cameras, data acquisition, and other bandwidth‑intensive applications.
Long‑Distance Active Optical Cable (AOC) – Up to 40 m
Active optical design supports stable, high‑speed data transmission over distances from 1 m up to 40 m, far beyond conventional passive copper USB cables.
USB 2.0 Backward Compatibility
Fully compatible with USB 2.0 High Speed (480 Mbps) up to 5 m, allowing use with legacy USB 2.0 devices while maintaining reliable connectivity.
USB Type‑A to USB Micro‑B Interface
Features a standard USB Type‑A host connector and USB Micro‑B device connector, widely used in industrial cameras, HD cameras, portable instruments, and embedded systems.
Power Support up to 5 V / 0.9 A
Supports USB bus power up to 5 V / 0.9 A, enabling direct powering of compatible USB devices without the need for an external power supply in many setups.
Robust Hybrid Fiber‑Copper Construction
Photoelectric hybrid cable combines optical fibers for high‑speed data with copper conductors for power, ensuring low signal loss, EMI immunity, and reliable power delivery over long distances.
Exceptional Flexibility – 5 mm Minimum Bend Radius
Minimum bending radius of only 5 mm allows routing in tight spaces, drag chains, cable carriers, and compact machine enclosures without damaging the cable.
Highly Durable for Dynamic Applications – 20 Million Drag Chain Cycles
Engineered for continuous motion, the cable has been tested for up to 20 million drag chain cycles while continuously connected, making it ideal for robotic arms, gantries, and moving camera systems.
EMI Shielding and ESD Protection
Integrated electromagnetic interference (EMI) shielding and electrostatic discharge (ESD) protection help ensure signal integrity and protect connected equipment in electrically noisy industrial environments.
Industrial‑Grade PVC Jacket with Flame Rating VW‑1
4.8 ± 0.2 mm black PVC outer sheath provides mechanical protection and flexibility; VW‑1 flame‑retardant rating supports use in demanding industrial and laboratory environments.
High Mechanical Strength
Cable tensile strength up to 220 N and connector housing tensile strength of 100 N (45 lbs) help resist pulling, snagging, and installation stress in dynamic setups.
Compact Connector Housing
Slim case size of approximately 34.5 mm x 18.5 mm x 9 mm allows easy installation in tight spaces, camera housings, and dense panel layouts.
Wide Operating Temperature and Humidity Range
Designed to operate from 0 to 50 °C with 0–85% RH, and to be stored between -5 and 85 °C, supporting use in typical factory floors, test benches, and field installations.
Environmentally Compliant – RoHS
Complies with RoHS (self declaration), reducing hazardous substances and supporting deployment in regions with strict environmental regulations.
Stable VBUS Operation up to 20 V Max
Working voltage rated up to 20 V max on VBUS, supporting robust power handling within USB specifications and enhancing reliability in demanding applications.
Optimized for Industrial and Machine Vision Systems
Specifically suited for industrial cameras, HD cameras, and high‑speed image capture systems where long‑distance, low‑latency, and noise‑immune USB connections are required.

Applications

Industrial Machine Vision Systems – Long‑distance connection between industrial cameras and host PCs for high‑speed image acquisition, inspection, metrology, quality control, and automated defect detection on production lines.
Factory Automation & Robotics – Reliable data link for USB 3.0/3.2 Gen2 cameras and sensors mounted on robotic arms, gantries, and moving stages where high drag‑chain durability and small bending radius are essential.
Industrial & Scientific Cameras – Connection of USB 3.0 industrial cameras, scientific CMOS cameras, fluorescence and microscopy cameras, and HD imaging devices used in research labs, life sciences, and material analysis.
High‑Resolution Video Capture – Streaming and capture of HD and high‑frame‑rate video from USB Micro‑B cameras and camcorders to recording systems, vision PCs, or external capture boxes over long distances without signal loss.
Test, Measurement & Data Acquisition – Linking high‑speed oscilloscopes, logic analyzers, data loggers, spectrum analyzers, and other USB 3.0 test instruments to control computers in labs, production test benches, and burn‑in stations.
Embedded & OEM Imaging Systems – Integration in kiosks, smart terminals, and embedded vision systems where USB Micro‑B cameras and sensors must be placed remotely from the processing unit while maintaining 10 Gbps performance.
Medical & Dental Imaging Equipment – Use in medical carts and diagnostic systems (e.g., intraoral cameras, slit lamps, endoscopic and dermatology cameras) that require low‑noise, EMI‑shielded, long‑reach USB connections.
Automation in Warehousing & Logistics – Connection of barcode readers, vision scanners, OCR cameras, and positioning systems in logistics centers, conveyor systems, and automated warehouses where extended cable runs are needed.
Broadcast, Studio & Live Production – Reliable high‑bandwidth USB link for studio cameras, teleprompter systems, tally cameras, and PTZ cameras with USB Micro‑B interface used in live streaming and broadcast environments.
VR/AR and 3D Scanning – High‑speed connection to depth cameras, 3D scanners, and head‑mounted devices that use USB Micro‑B, enabling low‑latency data transfer for VR/AR content creation and 3D metrology.
Security & Surveillance Systems – Long‑distance connection of USB surveillance and HD security cameras to monitoring servers in buildings, factories, laboratories, and critical infrastructure with strong EMI/ESD protection.
Harsh & High‑EMI Environments – Deployment in factories, power plants, automotive test cells, and environments with motors or inverters where EMI shielding and optical transmission maintain stable USB 3.0/3.2 Gen2 performance.
Automotive & Transportation Testing – Use in in‑vehicle test setups, test tracks, and dynamometer labs to link USB cameras and sensors to data acquisition systems over longer distances than copper USB cables allow.
Research Laboratories & Universities – Flexible interconnect for experimental setups, optical benches, and teaching labs needing reliable 10 Gbps communication with cameras, sensors, and instruments that move frequently.
Drag‑Chain and Moving‑Cable Applications – Ideal for cable carriers, linear stages, pick‑and‑place machines, and other dynamic systems, thanks to its up to 20 million drag‑chain cycles and 5 mm minimum bending radius.
Cleanroom and Semiconductor Equipment – Connection of inspection cameras and precision tools in cleanrooms where longer, contamination‑resistant, and low‑EMI USB links are required between tools and control units.
Kiosks, ATMs & Self‑Service Terminals – Remote positioning of HD cameras and peripheral devices in interactive kiosks, retail terminals, ticketing machines, and ATMs using compact A‑to‑Micro‑B USB connectivity.
Remote Workstations & Control Rooms – Extending USB 3.0 devices such as cameras, sensors, and specialized Micro‑B peripherals from the field to centralized control rooms or monitoring centers over up to 40 m.
High‑Speed External Storage & Peripherals* – Connection of USB 3.0 Micro‑B external SSDs, HDDs, and acquisition modules where moderate power (up to 5 V / 0.9 A) and very high data throughput are required over long distances.
*Within the limits of the supported power and device requirements.

Export & Trade Information

ECCN:	EAR99
HTS Code:	8544.42.9090
Estimated US Tariff:	27.6%

Importing, tariffs & codes (Quick Guide) →

$80.00

Volume Pricing:

Qty	Unit Price	Extended Price
10	$70.00	$700.00
100	$60.00	$6,000.00

Discounts apply automatically in cart.

Shipping:

Free Shipping

Ships from:

China

Est. US Tariff:

$22.08

Processing:

14 days (Est. arrival by Nov 16)

Delivers to:

United States

Made by:

Lucius

Made in:

China

Warranty:

View full terms

Returns:

View return policy

Sold by:

Lucius

On FindLight:

since 2026

Got Questions? Ask Below ▼

Message the supplier directly
No signup or account needed
Expect a fast reply

Ask a Question

To: Lucius
Re: USB 3.2 Gen2 Active Optical Cable Type A to Micro B 10Gbps

Name

Work Email

Organization

Country

Qty.

Your message to supplier

Thank you, your message was sent successfully.

Frequently Asked Questions

What is the Lucius Technologies USB 3.0 A-MB Active Optical Cable and what are its main features?

The Lucius Technologies USB 3.0 A‑MB AOC is an active optical cable (AOC) with a USB Type‑A plug on one end and a USB Micro‑B plug on the other. It uses optical fiber for the SuperSpeed data lanes and copper for power, enabling high‑speed data transmission over much longer distances than passive copper USB cables. Key features include: - USB 3.2 Gen2 1×2 bandwidth, supporting up to 10 Gbps data rate - Support length range from 1 m up to 40 m - Backward compatibility with USB 2.0 High‑Speed (480 Mbps at up to 5 m) - Power support up to 5 V / 0.9 A (standard USB 3.x bus power) - Compact in‑line electronics housing (approx. 34.5 × 18.5 × 9 mm) - 4.8 mm diameter PVC jacket, VW‑1 flame rating - EMI shielding and ESD protection - Minimum bending radius of 5 mm and up to 20 million drag‑chain cycles, making it suitable for industrial motion applications and machine vision setups.

What are typical applications for this USB 3.0 A-MB AOC cable?

This USB 3.0 A‑MB active optical cable is designed for high‑bandwidth, long‑distance USB connections where standard copper cables are too short or too stiff. Typical applications include: - Industrial cameras and machine vision systems (e.g., connecting a camera to a control PC several meters away on a production line) - High‑definition cameras and frame grabbers - Factory automation and robotics using drag chains or cable carriers - Test and measurement equipment requiring low‑noise, EMI‑resistant USB links - Any scenario requiring stable 10 Gbps USB 3.2 connectivity over distances up to 40 m. Like comparable USB 3.0/3.2 AOC products on the market, it is commonly used where signal integrity and mechanical durability are critical.

What lengths, mechanical specifications, and environmental ratings does this cable support?

The Lucius USB 3.0 A‑MB AOC supports use lengths from 1 m up to 40 m. The outer cable diameter is 4.8 ± 0.2 mm with a PVC sheath rated VW‑1 for flame resistance. The cable color and connector shell color are black. It is designed for robust use with: - Overall cable tensile strength of 220 N - Case/connector tensile strength of 100 N (≈45 lbs) - Minimum bending radius of 5 mm - Up to 20 million drag‑chain cycles under continuous motion conditions. Environmental ratings include: - Storage temperature: –5 to +85 °C - Operating temperature: 0 to +50 °C - Operating humidity: 0 to 85% RH (non‑condensing) - RoHS compliance via self‑declaration. These specs are comparable to other industrial‑grade USB AOCs used in automation and machine vision.

What data rates and protocols are supported, and is it backward compatible with USB 2.0 devices?

This active optical cable supports USB 3.2 Gen2 1×2, providing a SuperSpeed bandwidth of up to 10 Gbps, suitable for high‑resolution, high‑frame‑rate camera data and other bandwidth‑intensive peripherals. It is backward compatible with USB 2.0 High‑Speed at 480 Mbps over distances up to 5 m. In practice, this means: - When both host and device support USB 3.x, you can achieve up to 10 Gbps over the optical link (within the supported length range). - When connected to USB 2.0‑only devices or hosts, the link will fall back to 480 Mbps within 5 m. Like other USB 3.x AOCs, it is designed to be protocol‑transparent; no special drivers are needed if your operating system already supports the USB device being connected.

How is power handled on this USB 3.0 A-MB active optical cable, and can it power connected devices?

The cable uses copper conductors on the VBUS and ground lines to deliver power while optical fiber carries the SuperSpeed data. It supports up to 5 V / 0.9 A bus power, which is the standard power level for USB 3.x downstream ports. The specified maximum working voltage is 20 V on VBUS, but it is not a USB Power Delivery (USB‑PD) cable and should be used within normal USB power specifications unless otherwise directed by the device manufacturer. In typical use it can: - Power low‑to‑moderate power USB peripherals (such as many industrial and HD cameras, sensors, and dongles) directly from the host. - Rely on the host’s USB port current limit; if your device requires more than standard USB 3.x current or uses USB‑PD profiles, an external power supply or a compatible PD solution may still be required, consistent with how other USB AOCs on the market are used.

What are the connector types and device compatibility for the USB 3.0 A-MB AOC?

This cable features a USB Type‑A plug on one end and a USB Micro‑B plug on the other (often referred to as USB 3.0 Micro‑B, the two‑part wide micro connector commonly used on external hard drives and many industrial cameras). It is intended to connect: - A USB host (PC, industrial controller, embedded system) with a standard USB‑A port - To a USB peripheral that has a USB 3.0 Micro‑B receptacle, such as industrial cameras, HD cameras, external storage, or other USB 3.x devices. Because it is an active optical cable, it is directional: the USB‑A end should be plugged into the host, and the Micro‑B end into the device, as with other similar AOC products.

How does the USB 3.0 A-MB AOC compare to standard copper USB 3.0 cables in terms of EMI, ESD, and long-distance performance?

Compared with passive copper USB 3.0 cables, this active optical cable provides significantly better performance for long runs and electrically noisy environments: - Long distance: While copper USB 3.0 cables are typically limited to about 3 m for reliable 5 Gbps and less at higher data rates, this AOC supports up to 40 m at up to 10 Gbps when used as specified. - EMI immunity: Optical transmission is inherently immune to electromagnetic interference, and the cable adds built‑in EMI shielding on the copper sections to further protect the link, similar to other industrial USB AOC designs. - ESD protection: Integrated ESD protection on the electronic modules enhances reliability when hot‑plugging or operating in industrial environments where static discharge is common. This makes it comparable to high‑end industrial USB AOCs listed on FindLight and other machine‑vision catalogs, offering a more robust, low‑noise link than standard passive USB cables.
