Single Mirror Dual Axis Scanner
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2020
Description
The Dual Axis Scanning Mirror is a sophisticated optical component designed to deliver precise and reliable performance in various scanning applications. This compact device is engineered to provide exceptional control over light direction, making it an essential tool for industries that require meticulous optical manipulation. Its dual-axis capability allows for enhanced flexibility and precision, ensuring that users can achieve the desired scanning outcomes with ease.
Constructed with high-quality materials, the Dual Axis Scanning Mirror is built to withstand rigorous use while maintaining its performance integrity. The device's robust design incorporates advanced technology to ensure smooth and accurate motion across both axes. This makes it an ideal choice for professionals seeking a dependable solution for their optical scanning needs.
The Dual Axis Scanning Mirror's compact size does not compromise its functionality. Despite its small footprint, it offers a wide deflection angle and a clear aperture, allowing for versatile application across different fields. Its resonant frequency range and frequency response are meticulously calibrated to provide optimal performance, making it a valuable addition to any optical system.

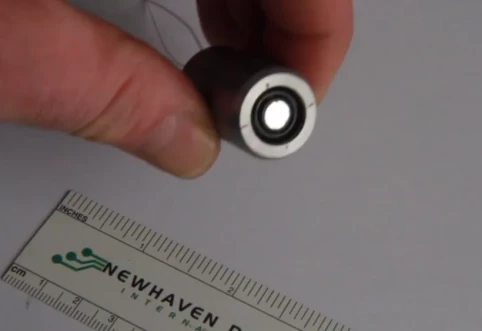

Single Mirror Dual Axis Scanner
Specifications |
|
|---|---|
| Available Options: | Non-contact measurement |
| Process Options: | Not Specified |
| Applications: | Semiconductors, Wafer and/or PCB inspection, Reticle inspection, Dimensional measurements, Mechanical and/or optical parts inspection, Automotive parts, Aerospace parts |
Features
- Dual Axis Scanning Capability: The single mirror dual axis scanner provides precise control over two axes, enhancing versatility in various applications.
- Compact Design: Small size makes it ideal for integration into space-constrained environments.
- Durable Construction: Tested for a failure-free life of 2 million cycles, ensuring long-term reliability.
- Smooth Motion: Axis/jewel bearing suspensions allow for smooth and precise motion.
- Built-in Optical Sensors: Integrated sensors enable real-time monitoring and feedback.
- Wide Deflection Angle: Offers a deflection angle of +/- 15° on both axes for extensive scanning coverage.
- High Resonant Frequency: Operates at a resonant frequency range of 20 – 80 Hz, suitable for various dynamic applications.
- Precision and Linearity: Linearity is maintained by a servo system, ensuring accurate performance.
- Specifications: Dimensions are 33.5 mm (H) x 20 mm (Ø) with a mirror clear aperture of Ø5.5 mm.
Applications
- Scanning Ellipsometry: Supports accurate thin-film measurement and material characterization.
- Doppler Flow Meters: Enables precise velocity measurement in fluid dynamics.
- Surface Roughness Measurement: Assists in high-resolution surface topology analysis.
- Interferometry: Provides controlled beam scanning for interferometric setups.
- Optical Coherence Tomography (OCT): Enhances imaging resolution with precise dual-axis scanning.
Frequently Asked Questions
The tilt mirror axis/jewel bearing suspensions allow for smooth motion, which is important for precise scanning.
Scanning mirrors can be used in a variety of applications, including ellipsometry, Doppler flow meters, OCT surface roughness measurement, and interferometry.
The cylinder dimensions of the single mirror dual axis scanner are 33.5 mm x 20mm, and the mirror clear aperture is Ø5.5 mm.
A single mirror dual axis scanner is a device that uses a single mirror to scan in two directions, allowing for precise control of the scanning pattern.
The single mirror dual axis scanner has a tested failure-free life of 2 million cycles.
