Distributed Bragg Reflector Lasers – Principles and Applications

This blog article is about Distributed Bragg Reflector (DBR) lasers and their applications. In this post we explore the operating principles of DBR lasers, how they differ from other diode lasers, and why they have become a critical tool in high-performance photonic systems.

This article is sponsored by Photodigm - a world leader in the development and manufacture of DBR lasers.

Table of Contents

Toggle

Introduction

Semiconductor laser technology has advanced dramatically over the past few decades, enabling compact, efficient, and highly tunable light sources. Among these devices, Distributed Bragg Reflector (DBR) lasers stand out for their exceptional wavelength stability, narrow linewidth, and spectral purity. These qualities make DBR lasers ideal for applications where precision is paramount – such as telecommunications, spectroscopy, and sensing.

Distributed Bragg Reflector (DBR) lasers are a specialized class of semiconductor lasers designed for single-frequency operation, excellent wavelength stability, and narrow linewidth. Unlike conventional Fabry-Pérot (FP) diode lasers, which tend to oscillate on multiple longitudinal modes, DBR lasers incorporate a wavelength-selective grating structure that ensures robust single-mode performance.

Typical DBR lasers operate in the wavelength range of 1.3 μm to 1.6 μm for telecom and sensing applications, though versions at 780 nm, 850 nm, and 1064 nm also exist. They exhibit:

• Linewidths in the range of 100 kHz to 10 MHz (free-running), much narrower than FP or DFB diodes (at 1550nm, 10 MHz linewidth corresponds to 0.08 pm).

• Side-mode suppression ratios (SMSR) >40 dB, ensuring clean spectral output.

• Temperature tuning range typically around 0.06 nm/°C.

• Output powers typically between 5 mW and 50 mW, with some high-power DBRs exceeding 150 mW.

These features make DBR lasers particularly attractive when frequency precision and spectral purity are more important than brute optical power.

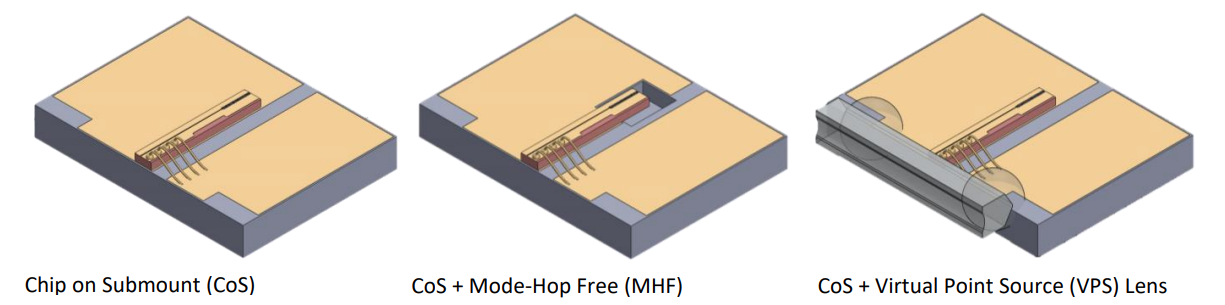

Simplified architecture of DBR (courtesy of Photodigm)

Principles of Distributed Bragg Reflector (DBR) Lasers

A DBR laser is a type of single-frequency semiconductor laser in which wavelength selection is achieved using a Bragg grating integrated into the device structure. Unlike conventional Fabry–Pérot (FP) diode lasers, which rely on mirror facets to provide feedback across a broad spectral range, DBR lasers use wavelength-selective feedback to ensure single longitudinal mode operation.

Key Components and Structure

1. Gain region – The active semiconductor layer that provides optical gain through electrical injection.

2. Phase section (optional) – Used to fine-tune the laser wavelength without mode hopping.

3. Distributed Bragg Reflector section – A built-in grating structure that reflects only a specific wavelength, ensuring narrow-linewidth emission.

The Bragg condition defines which wavelength is reflected:

  λ​ = 2*Neff*​Λ

where Neff​ is the effective refractive index of the waveguide and Λ is the grating period.

A DBR laser is built on a monolithic semiconductor chip similar to a DFB laser but with one critical difference. In a DFB laser, the grating is distributed throughout the gain section, whereas in a DBR laser, the grating is located outside the active gain region as a passive reflector. This spatial separation allows independent control of gain and wavelength. The gain section current determines how much optical power is generated while the grating section current (or temperature) fine-tunes the Bragg condition to lock the wavelength.

The Bragg grating reflects only a narrow band of wavelengths, typically with a reflectivity >90% and a stopband width on the order of 0.1–0.5 nm. The effective cavity length (and therefore the mode spacing) can be designed precisely, helping to suppress undesired longitudinal modes. Advanced DBR designs include sampled-grating DBR (SG-DBR) lasers, which achieve wide, mode-hop-free tuning ranges (>20 nm) using multiple independently biased sections, and extended DBR lasers, which integrate external phase-control sections for even finer frequency agility.

Comparison with Other Diode Lasers: Advantages of DBR Lasers

DBR lasers are prized for several performance characteristics:

1. Narrow Linewidth
   DBR lasers typically exhibit linewidths of a few MHz or less, making them suitable for high-resolution applications such as coherent communications and precision metrology.

2. Excellent Wavelength Stability
   Thanks to wavelength-selective Bragg feedback, DBR lasers maintain stable emission even under temperature fluctuations or drive current changes.

3. Single-Mode Operation
   DBR lasers operate on a single longitudinal mode, eliminating mode competition and improving signal quality.

4. Tunable Wavelengths
   By varying the injection current or temperature, DBR lasers can be fine-tuned without mode hopping – useful for dense wavelength division multiplexing (DWDM) systems.

5. Compact and Energy-Efficient
   Like other diode lasers, DBR lasers are compact, solid-state devices that consume relatively low electrical power compared to bulkier solid-state or gas lasers.

DBR vs. Fabry–Pérot Lasers:

• FP lasers are low-cost but have broad spectral output with multiple modes, making them unsuitable for precision applications.

• DBR lasers provide single-mode, stable output but at higher cost due to complex fabrication.

DBR vs. DFB Lasers:

• Both DBR and DFB lasers achieve narrow linewidth and single-frequency operation.

• DFB lasers have the grating integrated into the gain section, which can make them slightly more compact but less independently tunable.

• Distributed Bragg Reflector lasers, with separate gain and grating sections, offer more control over tuning characteristics and often lower phase noise.

DBR vs. External Cavity Diode Lasers (ECDL):

• ECDLs can achieve ultra-narrow linewidths by using bulk optics but are typically larger and less robust.

• DBR lasers offer a good compromise between compactness, robustness, and spectral performance.

Applications of Distributed Fiber Reflector (DBR) Lasers

DBR lasers are used wherever stable, narrowband optical sources are required. Therefore, their applications span several industries:

1. Telecommunications and Data Transmission

   • Wavelength-division multiplexing (WDM): DBR lasers provide the spectral stability (±0.01 nm) needed to pack multiple channels into dense grids (50 GHz spacing).

   • Coherent optical links: Their narrow linewidth (<1 MHz) minimizes phase noise, improving signal integrity.

2. Optical Sensing and LIDAR

   • Fiber Bragg grating (FBG) interrogation: A DBR laser’s stability enables accurate strain or temperature measurements with resolution <1 pm.

   • Frequency-modulated continuous-wave (FMCW) LIDAR: Their narrow linewidth improves range precision and reduces beat-frequency ambiguity.

3. Metrology and Test Equipment

   • Gas spectroscopy: DBR lasers can resolve fine absorption lines (line-widths narrower than Doppler broadening), thus making them suitable for detecting trace gases.

   • Calibration sources: The wavelength stability makes them excellent for wavelength lockers or reference sources.

4. Defense and Aerospace

   • Coherent detection systems: High SMSR ensures low optical background noise.

   • Free-space optical communications: DBR lasers withstand environmental stress better than more delicate ECDLs while maintaining spectral purity.

5. Industrial and Scientific Instrumentation

   • Optical coherence tomography (OCT): Tunable DBR lasers can serve as swept sources for certain OCT modalities.

   • Atomic and molecular physics: While ECDLs dominate ultra-high-resolution labs, DBR lasers are often used when compactness and robustness are more critical.

Future Trends in Distributed Bragg Reflector (DBR) Laser Development

As demand for high data rates, precision sensing, and compact photonic integration grows, DBR laser technology continues to evolve opening opportunities for integration with silicon photonics, extended wavelength ranges, and ultra-low noise DBR lasers. In silicon photonics combining DBR lasers with silicon-based platforms allows reducing packaging costs and enhancing scalability. Improved grating designs and packaging methods are pushing linewidths even lower, opening doors for quantum communications and precision metrology.

Conclusion

Distributed Bragg Reflector (DBR) lasers deliver single-frequency output, narrow linewidth, and excellent wavelength stability, making them an indispensable tool in telecommunications, spectroscopy, sensing, and metrology. By combining the compactness of semiconductor diode lasers with high spectral purity, DBR lasers bridge the gap between low-cost multimode devices and bulky, high-performance laboratory lasers.

As photonic systems demand ever-higher performance in ever-smaller footprints, DBR lasers will certainly continue to play a central role in next-generation optical communications, precision measurements, and integrated photonic platforms.

References

1. Coldren, L. A., Corzine, S. W., & Mašanović, M. L. Diode Lasers and Photonic Integrated Circuits. Wiley Series in Microwave and Optical Engineering.

2. Agrawal, G. P., & Dutta, N. K. Semiconductor Lasers. Springer.

3. Jeppesen, P. Introduction to Optical Communication.

4. Saleh, B. E. A., & Teich, M. C. Fundamentals of Photonics. Wiley.
