Scattering in Fiber Optics: Brillouin and Raman Processes

Brillouin and Raman scattering are pivotal nonlinear effects in fiber optics, enabling distributed sensing and influencing signal propagation. Brillouin scattering, driven by acoustic phonons, is highly sensitive to strain and temperature variations. Raman scattering, linked to molecular vibrations, forms the backbone of temperature-sensing systems and in-line amplification. Both phenomena are essential in applications ranging from structural health monitoring to high-capacity optical networks. A clear grasp of their mechanisms, differences, and use cases is critical for engineers developing next-generation photonic systems.

This article is made possible by the sponsorship of Gentec-EO, a leading designer and manufacturer of laser power measurement solutions

Introduction

In the field of fiber optics, nonlinear scattering phenomena play a crucial role in both enabling advanced functionalities and imposing performance limits. Among these, Brillouin scattering and Raman scattering stand out due to their unique physical origins and broad range of applications in sensing, amplification, and signal processing.

Brillouin scattering occurs due to the interaction between light and thermally excited acoustic phonons in the fiber medium, leading to a backward-scattered wave with a frequency shift. This shift is highly sensitive to environmental factors such as strain and temperature. This makes it ideal for distributed sensing over long distances with high spatial resolution.

Raman scattering, on the other hand, arises from the interaction between incident photons and molecular vibrations, resulting in Stokes and anti-Stokes shifted light components. The anti-Stokes signal intensity increases with temperature, forming the basis of distributed temperature sensing (DTS). In addition, stimulated Raman scattering (SRS) serves as an effective method for in-line optical amplification in long-haul fiber links.

Both effects are classified as inelastic scattering processes and have been harnessed in commercial technologies such as Brillouin Optical Time Domain Reflectometry (BOTDR), Brillouin Optical Time Domain Analysis (BOTDA), and Raman-based DTS systems. Their relevance extends beyond sensing to encompass critical roles in fiber lasers, coherent communication systems, and microwave photonics.

This article provides a focused technical overview of Brillouin and Raman scattering in optical fibers. We will examine the physical principles behind each phenomenon, explore their comparative characteristics, and highlight key applications in sensing and telecommunications. Understanding these effects is essential for engineers working on the frontiers of fiber optic technology.

Fundamentals of Optical Scattering

Optical scattering in fibers arises when the propagation of light is perturbed by microscopic fluctuations in the medium. Examples of these fluctuations include variations in density, composition, or molecular structure. These interactions redistribute the optical energy, leading to scattered light. Depending on the nature of the interaction, the scattered light may retain or shift its frequency.

Scattering in optical fibers can be broadly categorized into elastic and inelastic types:

• Rayleigh scattering is an elastic process where the scattered light retains the same frequency as the incident wave. It results from refractive index fluctuations due to structural inhomogeneities smaller than the wavelength of light. Rayleigh scattering dominates attenuation (loss) in optical fibers, particularly at shorter wavelengths as scattering is inversely proportional to wavelength.
• Brillouin scattering and Raman scattering are inelastic, involving a transfer of energy between light and vibrational modes in the fiber material. In these processes, the scattered light experiences a frequency shift, corresponding to the energy of the phonons involved:
  • Brillouin scattering involves acoustic phonons (longitudinal density waves).
  • Raman scattering involves optical phonons (molecular vibrations).

Both inelastic processes are relatively weak but can become significant at high optical intensities. These effects become stronger for longer fiber links. They are also stimulated under specific conditions, such as with narrow-linewidth high-power lasers, which leads to exponential gain of the scattered signal and becomes a cornerstone for sensing and amplification technologies.

Understanding the interplay between these scattering processes is essential when designing fiber systems for high sensitivity (e.g., sensors) or high throughput (e.g., telecom), as they can either be exploited as functional mechanisms or mitigated as sources of nonlinear impairment.

What is Brillouin Scattering?

Brillouin scattering is an inelastic interaction between light and acoustic phonons, thermally excited pressure waves propagating through the fiber medium. When an optical wave travels through the fiber, it induces periodic density variations due to electrostriction. These variations act like a moving grating, scattering a portion of the light in the backward direction. The frequency of the scattered light is downshifted by an amount known as the Brillouin frequency shift. It is typically around 10.8 to 11 GHz in standard single-mode fibers at 1550 nm. The acoustic velocity in the fiber and the optical wavelength determines the frequency shift, making it highly sensitive to external strain and temperature.

Brillouin scattering exists in both spontaneous and stimulated forms. Spontaneous Brillouin scattering (SpBS) arises naturally from thermal fluctuations and produces a weak backscattered signal. In contrast, stimulated Brillouin scattering (SBS) occurs when the optical power exceeds a threshold. In conventional fibers, this threshold is typically a few milliwatts. At this point, the scattered wave and the acoustic wave become mutually reinforcing, leading to a narrowband, coherent gain for the Stokes-shifted signal. While SBS can be a limiting factor in high-power fiber communication systems due to its low threshold, it is also exploited in specialized applications such as optical signal processing and narrow-linewidth laser generation.

The extreme sensitivity of Brillouin scattering to changes in strain and temperature has enabled the development of distributed sensing systems. In Brillouin Optical Time Domain Reflectometry (BOTDR) and Brillouin Optical Time Domain Analysis (BOTDA), the frequency shift of the backscattered signal helps infer the physical conditions along the length of the fiber. These systems can provide spatial resolution on the order of one meter and operate over distances exceeding 50 kilometers, making them valuable tools in infrastructure monitoring, energy systems, and geotechnical engineering.

What is Raman Scattering?

Raman scattering is another form of inelastic light-matter interaction, but instead of acoustic phonons, it involves optical phonons, which are vibrational modes within the molecular structure of the fiber material. When a photon interacts with a molecule, it may lose or gain energy depending on whether it excites or de-excites a vibrational mode. This results in scattered light at frequencies shifted from the incident light, known as Stokes (lower frequency) and anti-Stokes (higher frequency) components.

In spontaneous Raman scattering, the shift in frequency is accompanied by relatively weak intensity, but the anti-Stokes component exhibits a strong dependence on temperature. This property forms the basis of distributed temperature sensing (DTS) systems. By analyzing the intensity ratio between the Stokes and anti-Stokes signals, it is possible to determine the temperature profile along the fiber with high accuracy. Raman-based DTS is widely used in critical applications such as fire detection, power cable monitoring, and oil pipeline surveillance.

When optical power increases to the range of several hundred milliwatts or higher, stimulated Raman scattering (SRS) can occur. In this regime, the interaction between the optical field and the vibrational modes becomes coherent, leading to significant gain for the Stokes-shifted signal. This principle is harnessed in Raman amplification, where a high-power pump provides distributed gain to data-carrying signals along the transmission fiber. Raman amplifiers are especially useful in long-haul and submarine optical communication links due to their broad gain bandwidth and the ability to boost signal power over long distances with minimal noise.

Unlike Brillouin scattering, which is confined to narrow frequency shifts and primarily backward directionality, Raman scattering offers a much broader spectral shift, on the order of 10 to 20 THz, and is typically dominant in the forward direction. These differences in frequency range, scattering geometry, and threshold behavior define how and where each scattering process is best applied.

Key Differences Between Brillouin and Raman Scattering

Brillouin and Raman scattering differ primarily in the type of phonons involved, the directionality of scattering, and their spectral characteristics. Brillouin scattering interacts with acoustic phonons and results in a narrow frequency shift (~10–11 GHz). Most of the scattered light is backward propagating. Raman scattering involves optical phonons, producing a much broader shift (~10–20 THz), and is predominantly forward-scattered.

The power threshold for stimulated interaction is also distinct. Brillouin scattering occurs at low powers (a few mW), while Raman requires much higher pump levels (hundreds of mW). These differences shape their applications: Brillouin is preferred for strain and temperature sensing due to its frequency sensitivity, while Raman is widely used for temperature sensing and broadband amplification.

Applications in Fiber Optic Sensing

Brillouin and Raman scattering have become foundational technologies in distributed fiber optic sensing, enabling precise, real-time monitoring of environmental and structural conditions over long distances.

Brillouin-based sensors excel in measuring both strain and temperature with high spatial resolution. By tracking shifts in the Brillouin frequency, engineers can detect subtle mechanical stresses and thermal changes along critical infrastructure such as pipelines, bridges, and power lines. Systems like BOTDA and BOTDR have matured into robust solutions for structural health monitoring and geotechnical applications, offering sensing lengths exceeding 50 km with meter-scale resolution.

Raman scattering is predominantly leveraged for temperature sensing. Raman Distributed Temperature Sensing (DTS) systems exploit the temperature-dependent anti-Stokes signal intensity to provide accurate thermal profiles across vast installations. These systems are extensively used in oil and gas industries to monitor pipeline temperatures, in fire detection for early warning, and in power grid management to prevent overheating in cables and transformers.

Both scattering mechanisms also play roles beyond sensing. Raman scattering underpins distributed Raman amplifiers in fiber optic communication, improving signal strength over long-haul links. Meanwhile, emerging microwave photonics and coherent signal processing techniques are utilizing Brillouin scattering .

Together, these effects have expanded the capabilities of fiber optics from passive data transmission to active, intelligent monitoring platforms critical for modern infrastructure resilience.

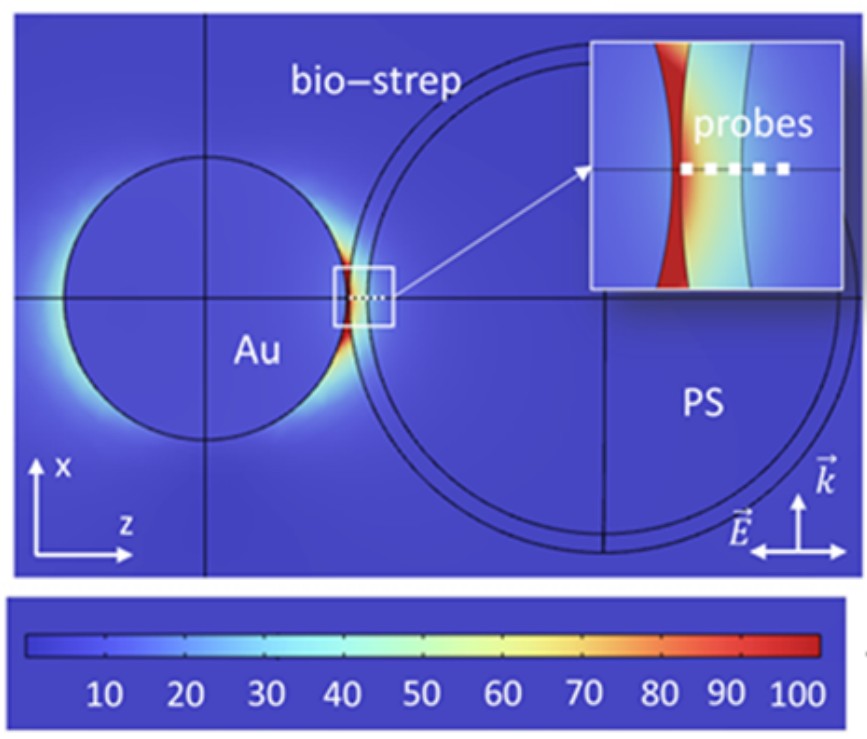

Modeling results of on-chip components for surface-enhanced Raman spectroscopy. Courtesy of Optica Publishing Group

Challenges and Future Directions

Despite their widespread adoption, both Brillouin and Raman scattering-based technologies face ongoing challenges that drive research and innovation.

In Brillouin sensing, achieving higher spatial resolution and faster measurement speeds remains a key objective. Traditional time-domain methods trade off between distance and resolution. This prompted the development of advanced techniques such as correlation-domain sensing and coherent detection schemes. Moreover, discriminating temperature from strain effects requires either hybrid sensing approaches or novel fiber designs with tailored sensitivities.

Raman-based temperature sensing must overcome issues related to signal attenuation and noise, especially over extended distances. Enhancing the signal-to-noise ratio through improved detector technologies and advanced signal processing algorithms is an active area of work. Additionally, integrating Raman sensing with other fiber optic modalities is gaining interest for comprehensive multi-parameter monitoring.

On the telecommunications front, nonlinear scattering effects impose power limitations that constrain system capacity and reach. Mitigating unwanted stimulated Brillouin and Raman scattering while exploiting their benefits for amplification and signal processing demands precise fiber design and pump management.

Looking forward, emerging materials like specialty fibers, including photonic crystal and multi-core fibers, offer new platforms to tailor scattering interactions. Advances in machine learning and distributed computing also promise smarter interpretation of scattering data, enabling predictive maintenance and real-time diagnostics across industries.

Future Outlook

Advancements in Scattering-Based Sensing and Amplification

The future of Brillouin and Raman scattering technologies is being shaped by emerging demands in smart infrastructure, precision sensing, and high-capacity communications. As industries push for more granular monitoring and automation, fiber-based scattering systems are expected to evolve significantly in both capability and deployment flexibility.

For Brillouin sensing, one major direction is improving spatial resolution to the centimeter scale without sacrificing sensing range. This is particularly important in structural health monitoring of critical infrastructure such as aircraft fuselages, composite materials, and high-speed rail networks. Techniques like Brillouin Optical Correlation Domain Analysis (BOCDA) and dynamic BOTDA are showing promise in this regard. Concurrently, there is growing interest in portable, low-power Brillouin sensing units that can be embedded in distributed systems or UAVs for remote inspections.

In Raman-based systems, integration with distributed acoustic sensing (DAS) and Brillouin sensing is gaining momentum to enable comprehensive multi-parameter monitoring including temperature, strain, and vibration from a single fiber link. This convergence is critical for applications in energy production, where real-time thermal and mechanical data are both essential.

Toward Intelligent Photonic Infrastructure

Materials science will also play a transformative role. New fiber types, such as hollow-core photonic bandgap fibers, low-loss fluoride fibers, and radiation-hardened glass—are opening doors for scattering-based sensing in harsh environments, including nuclear facilities, aerospace, and undersea operations.

In telecommunications, as data traffic grows, controlling unwanted SBS and SRS becomes more complex. Future coherent communication systems may actively exploit nonlinear scattering for signal regeneration, noise filtering, or microwave signal generation. Coupled with AI-driven network optimization, nonlinear scattering may become a controllable resource rather than a limiting factor.

Finally, broader adoption will depend on reducing system cost and complexity. Advances in photonic integration, especially chip-scale distributed sensors and Raman amplifiers, will be central to making these technologies scalable. This has the potential to benefit smart cities, industrial IoT, and global telecom networks.

Conclusion

Brillouin and Raman scattering are critical tools in modern fiber optics, enabling precise, distributed sensing and high-performance signal management. Their contrasting physical mechanisms and complementary strengths have led to diverse applications across infrastructure monitoring, energy systems, and long-haul communications.

Growing demand for smarter networks drives innovation in materials, signal processing, and system integration for broader impact. Scattering-based fiber systems will evolve alongside intelligent photonic infrastructure, from centimeter-scale sensing to Raman amplification in transoceanic links.

References

1. Galindez-Jamioy, C. A., López-Higuera, J. M., Brillouin Distributed Fiber Sensors: An Overview and Applications, Journal of Sensors, 2012, 204121, 17 pages, 2012. https://doi.org/10.1155/2012/204121
2. Li, J., Zhang, M. Physics and applications of Raman distributed optical fiber sensing. Light Sci Appl 11, 128 (2022). https://doi.org/10.1038/s41377-022-00811-x
3. A. Ukil, H. Braendle and P. Krippner, “Distributed Temperature Sensing: Review of Technology and Applications,” in IEEE Sensors Journal, vol. 12, no. 5, pp. 885-892, May 2012, doi: 10.1109/JSEN.2011.2162060.
   keywords: {Temperature measurement;Power cables;Temperature sensors;Monitoring;Temperature distribution;Windings;Strain;Ampacity;anti-Stokes;Brillouin;cable temperature;distributed strain;DTS;fiber optic temperature sensing;fire detection;leakage detection;locomotive temperature;Raman scattering;sag;Stokes;structural health;transformer hot spot},
4. Zou, Weiwen, et al. ‘Brillouin Scattering in Optical Fibers and Its Application to Distributed Sensors’. Advances in Optical Fiber Technology: Fundamental Optical Phenomena and Applications, InTech, 25 Feb. 2015. Crossref, doi:10.5772/59145.
5. Sirleto L, Ferrara MA. Fiber Amplifiers and Fiber Lasers Based on Stimulated Raman Scattering: A Review. Micromachines (Basel). 2020 Feb 26;11(3):247. doi: 10.3390/mi11030247. PMID: 32111055; PMCID: PMC7143347.
