Miniaturized Spectroscopy: The Rise of Handheld Devices

Spectroscopy has become an essential technique for material identification, chemical analysis, and quality control. Traditionally, spectrometers were large, lab-bound instruments. Advances in optics, microelectronics, and computing have led to miniaturized spectroscopy, enabling real-time, field-ready analysis. Handheld devices now offer Raman, NIR, and LIBS capabilities, supporting applications in pharmaceuticals, forensics, agriculture, and environmental monitoring. This article explores the rise of miniaturized spectroscopy, its key technologies, benefits, limitations, and future trends.

This guide is brought to you by Zolix Instruments– leading supplier of precision optical instruments and products, specializing in precision mechanical motion and control technologies.. Depicted above is their Handheld Raman Spectrometer offering one-click recognition and cloud monitoring with high-end customization.

1. Introduction

Spectroscopy is a fundamental technique in physics, chemistry, and material science, used to analyze the interaction between light and matter. It enables precise identification of chemical compositions, molecular structures, and physical properties of substances. Industries such as pharmaceuticals, food safety, environmental science, and manufacturing rely on spectroscopy for quality control, process monitoring, and compliance.

Historically, spectrometers were large, complex instruments housed in laboratories. Their size and power requirements limited real-time, on-site analysis. However, advancements in optics, microelectronics, and computational processing have led to the development of miniaturized spectroscopy — a shift from bulky benchtop systems to handheld, portable devices. These compact spectrometers now enable field-based chemical analysis without sacrificing accuracy.

This transition has unlocked new possibilities in real-world applications, from rapid drug verification to detecting contaminants in food and water. The rise of handheld Raman, NIR, and LIBS spectrometers are examples of this trend, making spectroscopy more accessible and efficient across industries.

2. What is Miniaturized Spectroscopy?

Miniaturized spectroscopy refers to the development of compact, portable spectrometers capable of performing real-time optical analysis outside of a laboratory setting. Unlike traditional benchtop instruments, these devices integrate advanced optical and electronic components to achieve high-performance spectral measurements in a smaller form factor.

2.1. Technology Behind Handheld Spectrometers

Handheld spectrometers operate on the same fundamental principles as their larger counterparts: they analyze how light interacts with a sample to determine its composition. However, to achieve portability, these devices leverage advances in micro-optics, solid-state detectors, and embedded computing. The miniaturization process involves reducing optical path lengths, integrating digital processing, and replacing bulky mechanical components with microelectromechanical systems (MEMS).

2.2. Key Components Enabling Miniaturization

Several key technologies drive the development of miniaturized spectrometers:

• Microelectromechanical Systems (MEMS) – MEMS-based diffraction gratings and interferometers replace traditional bulky optical components, reducing size while maintaining spectral resolution.
• Fiber Optics – Compact fiber-optic sampling systems enable efficient light collection and delivery, eliminating the need for large sample chambers.
• CMOS and CCD Sensors – Miniaturized charge-coupled devices (CCD) and complementary metal-oxide-semiconductor (CMOS) detectors capture spectral data with high sensitivity in a compact package.
• Miniaturized Lasers and LEDs – Modern spectrometers use compact diode lasers or LEDs as excitation sources, reducing power consumption and enhancing portability.
• Embedded Processors and AI Integration – Onboard digital signal processing (DSP) units and AI-driven spectral analysis improve real-time data processing, eliminating the need for external computing power.

Using these components, handheld spectrometers deliver laboratory-grade performance in a fraction of the space. These advancements have enabled field applications in pharmaceutical authentication, forensic analysis, food safety, and industrial quality control — areas where real-time, on-site spectral analysis is critical.

3. Types of Handheld Spectrometers

The miniaturization of spectroscopy has led to the development of several types of handheld spectrometers, each catering to specific analytical needs. While traditional laboratory instruments provide high-resolution spectral data, the advent of compact, field-deployable spectrometers has enabled real-time decision-making in applications ranging from pharmaceuticals to industrial quality control. The three most widely adopted handheld spectroscopic techniques are Raman spectroscopy, near-infrared (NIR) spectroscopy, and laser-induced breakdown spectroscopy (LIBS). Each method exploits different physical principles to extract chemical and structural information, making them suitable for distinct applications.

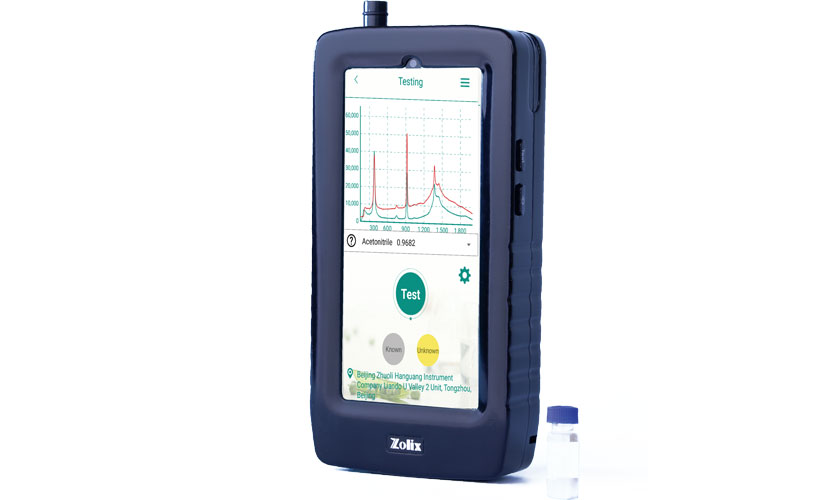

3.1. Handheld Raman Spectrometers

Handheld Raman spectrometers leverage inelastic scattering of monochromatic laser light to provide molecular fingerprints of materials. When incident photons interact with a sample, a fraction of them undergoes energy shifts due to vibrational and rotational modes of the molecules. The resulting Raman spectrum is highly specific, allowing for precise chemical identification. Unlike infrared-based techniques, Raman spectroscopy is particularly effective for analyzing covalently bonded compounds, including pharmaceuticals, polymers, and complex organic materials.

In the pharmaceutical industry, Raman spectrometers are employed for non-invasive verification of drug formulations, active pharmaceutical ingredients (APIs), and excipients. Counterfeit drug detection has become a major application, as Raman’s ability to penetrate packaging allows rapid identification without altering the product. In forensics, Raman is widely used for identifying illicit substances, explosives, and trace evidence at crime scenes. Furthermore, its non-contact nature makes it a valuable tool in art restoration and archaeological analysis, where fragile pigments and coatings can be characterized without damage.

Despite its advantages, Raman spectroscopy faces challenges, primarily fluorescence interference from certain samples, which can overshadow weak Raman signals. Additionally, while advancements in laser stabilization and detector sensitivity have improved performance, Raman spectrometers still require careful optimization of laser power, integration time, and filtering techniques to achieve reliable results in field conditions.

3.2 Handheld Near-Infrared (NIR) Spectrometers

Near-infrared (NIR) spectroscopy is based on the absorption of light in the 800–2500 nm range, primarily interacting with overtone and combination bands of molecular vibrations. This technique is particularly effective for analyzing organic materials, as it provides insight into molecular bonds such as C-H, O-H, and N-H. Unlike Raman, which is sensitive to molecular structure, NIR spectroscopy excels at quantifying moisture, fat, protein, and carbohydrate content, making it invaluable in food analysis, agriculture, and pharmaceutical quality control.

One of the biggest advantages of handheld NIR spectrometers is their ability to perform non-destructive, real-time measurements with minimal or no sample preparation. In the food industry, NIR is used to assess the quality and composition of raw materials, ensuring compliance with regulatory standards. In agriculture, portable NIR devices allow farmers and agronomists to measure soil nutrient levels, monitor crop quality, and optimize fertilizer use in the field. Pharmaceutical applications include rapid tablet and capsule verification, as well as moisture detection in lyophilized drugs.

However, NIR spectroscopy has its own limitations. The technique requires extensive chemometric modeling to correlate spectral data with physical or chemical properties. Since absorption bands in the NIR region are broad and overlapping, principal component analysis (PCA) and partial least squares regression (PLSR) are often needed to extract meaningful information. Additionally, while NIR is highly effective for bulk analysis, it struggles with trace-level detection compared to techniques like Raman and LIBS.

3.3. Handheld Laser-Induced Breakdown Spectroscopy (LIBS) Spectrometers

LIBS is an atomic emission spectroscopy technique that utilizes a high-energy laser pulse to ablate a small amount of material from a sample. The resulting plasma emits light characteristic of the elemental composition, which is then analyzed to determine the presence and concentration of specific elements. Unlike Raman and NIR, which rely on vibrational spectroscopy, LIBS directly probes the atomic structure of a sample, making it particularly useful for metallurgical analysis, mining, and hazardous material detection.

One of the key advantages of LIBS is its ability to perform rapid, in situ elemental analysis without sample preparation. It is widely used in alloy identification, where precise quantification of elements such as Fe, Al, Cu, and Ti is critical for quality control in manufacturing. In the mining industry, LIBS allows geologists to analyze ore compositions in the field, reducing the reliance on laboratory-based X-ray fluorescence (XRF) analysis. The ability to detect toxic elements such as lead, cadmium, and mercury has also positioned LIBS as a valuable tool for environmental monitoring and regulatory compliance.

Despite its advantages, LIBS has certain challenges. Since it is a destructive technique, albeit on a microscopic scale, it may not be suitable for highly sensitive applications like pharmaceutical or forensic analysis. Additionally, spectral interpretation can be complex due to matrix effects, where changes in sample composition alter the plasma emission characteristics. While modern LIBS spectrometers integrate machine learning algorithms to improve elemental quantification, careful calibration and reference standards are still required for high-precision measurements.

4. Challenges of Handheld Spectrometers

While the advantages of handheld spectrometers—portability, real-time analysis, and non-destructive testing—are well understood, these devices come with inherent trade-offs. Miniaturization requires compromises in sensitivity, resolution, power efficiency, and spectral range, making handheld instruments less capable than their benchtop counterparts in certain applications. Below, we examine the primary challenges faced by handheld spectrometers and the ongoing advancements aimed at mitigating these limitations.

4.1. Sensitivity and Signal-to-Noise Ratio (SNR)

One of the fundamental trade-offs in miniaturized spectroscopy is reduced sensitivity due to shorter optical paths and smaller detector arrays. Benchtop spectrometers often utilize high-power light sources, precision optics, and large cooled detectors to maximize signal capture and minimize thermal noise. In contrast, handheld devices rely on compact optics and lower-power excitation sources, which inherently limit the signal-to-noise ratio.

For Raman spectroscopy, this limitation is particularly pronounced. A weaker Raman signal necessitates higher laser power or longer integration times—both of which introduce constraints on power consumption and usability. Similarly, in NIR spectroscopy, smaller optical apertures and lower detector sensitivity can make it difficult to detect low-concentration compounds, necessitating advanced chemometric calibration and spectral preprocessing techniques.

4.2. Spectral Resolution and Accuracy

Spectral resolution, which determines a spectrometer’s ability to differentiate between closely spaced spectral lines, is typically lower in handheld instruments than in their benchtop counterparts. This is due to the use of miniaturized diffraction gratings, lower-quality optics, and smaller detector elements, which limit the resolving power.

For Raman spectrometers, a lower spectral resolution can make it difficult to distinguish between structurally similar compounds. In NIR spectroscopy, broader absorption bands in the near-infrared region already make spectral deconvolution challenging, and reduced resolution further complicates data interpretation. LIBS spectrometers, which rely on emission line identification, can suffer from spectral peak broadening, reducing their ability to accurately differentiate elements with overlapping emission spectra.

4.3. Limited Spectral Range

Handheld spectrometers often have a narrower spectral range compared to full-sized lab instruments. This limitation arises from size constraints in optical components, filters, and gratings that restrict the amount of spectral data captured in a single measurement.

For example, handheld Raman spectrometers typically cover a limited wavenumber range (e.g., 200–3200 cm⁻¹), whereas high-end benchtop Raman systems can capture a much broader range. In NIR spectrometers, the restricted spectral bandwidth can prevent full analysis of complex organic compounds, requiring multiple instruments to cover the full spectrum. LIBS spectrometers also face challenges in covering the entire elemental range, as some devices are optimized for light elements (e.g., Li, Be, B), while others focus on heavier metals.

4.4. Power Consumption and Battery Life

Miniaturized spectrometers must balance performance with energy efficiency, as they rely on battery power for field use. High-intensity light sources, detectors, and embedded processors all consume energy, limiting operational time before recharging is required.

You might also want to check out our article on Emerging Battery Technologies: 5 New Alternatives.

Laser-based spectrometers, such as Raman and LIBS, face the most significant challenges in this regard. Raman instruments require high-power laser diodes to generate detectable Raman scattering, while LIBS spectrometers need short, high-energy laser pulses to create plasma emissions. This places constraints on battery capacity and device runtime.

To address these issues, modern handheld spectrometers integrate low-power CMOS detectors, MEMS-based light sources, and optimized signal processing algorithms to enhance performance without draining battery life. However, power efficiency remains a limiting factor in extended fieldwork applications.

4.5. Data Processing and Calibration Dependence

Handheld spectrometers generate vast amounts of spectral data, but real-time processing is constrained by limited onboard computing power. Unlike benchtop systems, which can leverage powerful external computers for advanced spectral deconvolution, handheld devices must rely on embedded processors and cloud-based analytics. This often necessitates predefined calibration models that may not generalize well across diverse sample types.

NIR spectrometers, in particular, require extensive chemometric modeling to correlate spectral data with material properties. While advancements in AI-driven spectral interpretation are improving accuracy, robust calibration remains a challenge, especially when dealing with unknown or highly variable samples.

Additionally, field-use spectrometers are more susceptible to environmental variability, such as changes in ambient temperature, humidity, and stray light interference. These factors can introduce drift in spectral readings, requiring frequent recalibration to maintain accuracy.

4.6. Cost and Trade-offs in Affordability vs. Performance

Handheld spectrometers are typically designed for specific applications, leading to a trade-off between cost and versatility. While benchtop systems can be adapted for multiple spectral techniques with modular configurations, portable spectrometers are often optimized for a single use case (e.g., drug verification, food quality assessment, metal identification).

Lower-cost handheld spectrometers may suffer from lower detector sensitivity, reduced spectral resolution, and limited dynamic range, making them unsuitable for high-precision scientific applications. Advanced models with high-performance optics, AI-driven data processing, and ruggedized enclosures can rival benchtop instruments in certain applications but come at a significantly higher cost.

4.7. Future Innovations to Overcome These Challenges

Despite these limitations, ongoing advancements in sensor miniaturization, AI-enhanced spectral interpretation, and low-power photonic components are addressing many of these challenges. Emerging technologies include:

• Quantum cascade lasers (QCLs) and supercontinuum sources for improved spectral coverage and sensitivity.
• AI-driven spectral deconvolution to compensate for resolution limitations in Raman and NIR spectrometers.
• MEMS-based tunable filters to enhance spectral selectivity in compact systems.
• Advanced battery technologies and energy-efficient embedded processors to extend device runtime.
• Cloud-based spectral databases for real-time material identification and machine learning-assisted calibration.

While handheld spectrometers may never fully replace high-end laboratory instruments, they continue to bridge the gap between convenience and precision, making spectroscopy more accessible and practical for real-world applications. As miniaturization and computational power improve, the next generation of handheld spectrometers will offer even greater accuracy, sensitivity, and usability, pushing the boundaries of on-the-go material analysis.

5. Applications Driving the Adoption of Miniaturized Spectroscopy

Miniaturized spectroscopy is transforming industries that require real-time, on-site chemical analysis. The ability to perform rapid, non-destructive testing has led to widespread adoption in manufacturing, pharmaceuticals, and environmental monitoring.

Quality Control in Manufacturing: Handheld spectrometers enable material verification, defect detection, and compliance testing without disrupting production. LIBS is widely used for metal alloy identification in automotive and aerospace industries, while Raman and NIR spectrometers assist in polymer, plastic, and food quality analysis. In electronics, LIBS helps detect hazardous substances like lead and mercury to comply with RoHS regulations.

Drug Verification in Pharmaceuticals: Raman and NIR spectrometers are used for counterfeit drug detection, raw material validation, and final product inspection. Counterfeit drugs pose a major global risk, and handheld Raman devices allow instant authentication by comparing spectra against reference databases. In production, NIR spectrometers verify API purity and tablet composition, ensuring regulatory compliance and product consistency.

Environmental Monitoring and Remote Sensing: Miniaturized spectrometers play a critical role in water, air, and soil analysis. LIBS and Raman spectrometers detect heavy metals, pesticides, and VOCs in polluted areas. In agriculture, NIR spectrometers measure soil nutrient levels, optimizing fertilizer use and improving crop yields. For hazardous waste assessment, these tools provide rapid chemical characterization to aid in cleanup and regulatory enforcement.

6. The Future of Handheld Spectroscopy

The field of handheld spectroscopy is poised for significant advancements, driven by innovations in artificial intelligence (AI), machine learning (ML), and sensor technology. These developments aim to enhance the accuracy, efficiency, and applicability of portable spectrometers across various industries.

6.1. AI and Machine Learning Integration

Integrating AI and ML into handheld spectrometers is transforming data analysis by enabling rapid and precise interpretation of complex spectral information. Traditional spectral analysis often requires extensive calibration and expert interpretation; however, AI algorithms can learn from vast datasets to identify patterns and make predictions with minimal human intervention.

For instance, the development of smart handheld Raman spectrometers equipped with cloud-based AI deep learning algorithms has been reported. These devices leverage cloud connectivity to access extensive spectral databases, allowing for real-time, automated material identification and mixture analysis.

In the pharmaceutical industry, AI-enhanced handheld spectrometers are being utilized for the detection of trace chemicals and microbes. By applying advanced signal processing and ML techniques, these devices can identify contaminants at low concentrations, bringing laboratory-grade analysis to field settings.

6.2. Advancements in Sensor Technology and Data Processing

Recent developments in sensor technology are pivotal in enhancing the performance of handheld spectrometers. The miniaturization of components, such as fully integrated multipixel detector arrays, has led to more compact and efficient devices. For example, a handheld NIR spectral sensor module based on a fully integrated sensor chip has been developed, enabling applications like quantification of fat percentage in raw milk and classification of plastic types.

Incorporating AI into data processing workflows further augments the capabilities of these devices. AI algorithms can handle complex datasets, improve signal-to-noise ratios, and compensate for limitations inherent in miniaturized hardware. This synergy between advanced sensor technology and AI-driven data processing is expanding the applicability of handheld spectrometers in fields such as environmental monitoring, food safety, and medical diagnostics.

As these technologies continue to evolve, handheld spectrometers are expected to become more versatile, accurate, and user-friendly, solidifying their role as indispensable tools in various analytical applications.

7. Conclusion

The advent of miniaturized spectroscopy has significantly transformed various industries by providing portable, real-time analytical capabilities. Handheld spectrometers have become indispensable tools in fields such as manufacturing, pharmaceuticals, and environmental monitoring, enabling on-site analysis that was previously confined to laboratories. Advancements in artificial intelligence and sensor technology continue to enhance their performance, making them more accessible and efficient. As these technologies progress, we can anticipate even broader applications and improved functionalities, solidifying the role of handheld spectrometers in modern analytical practices.
