Calibrated Photodiodes

ROF -BPR series of balanced light detection module integrates two matching photodiode and an ultra-low noise transimpedance amplifier, effectively reducing the laser noise and common mode noise, improving the system’s noise ratio, having a variety of spectral response optional , Low noise, high gain, easy to use and so on, ...

Specifications

Material: Silicon (Si)
Spectral Range: 320-1000nm
Effective Aperture: -- mm
Mounting: Mounted
Data Sheet

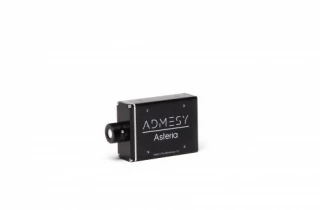

Admesy’s Asteria is a high-speed measurement device suited for luminance, illuminance and flicker measurements. Based on the popular Admesy platform the Asteria is designed for in-line use with integrated calculating power for easy implementation and high speed measurement results in production settings. The Asteria is ...

Specifications

Material: Silicon (Si)
Spectral Range: 380-780nm
Effective Aperture: N/a mm
Mounting: Mounted or Unmounted
Filter Response: CIE 1931 luminosity curve V(λ)
...
Data Sheet
KV104 MCT Photodiode Series
Kolmar Technologies
Model KV104 series is wide electrical bandwidth infrared detector sensor with cutoff wavelength greater than 11 um. The MCT photovoltaic detector covers the spectral range from 2um to 11.5 um. There are several external transimpedance amplifiers (DC or AC coupled) with matched bias circuits. The maximum detector size is 1 mm x 1 ...

Specifications

Material: Other
Spectral Range: 2000-11500nm
Effective Aperture: -- mm
Mounting: Mounted or Unmounted
Data Sheet
KISDP-1-J2 InSb Photodiode-Preamplifier
Kolmar Technologies
Model KISDP series detectors are indium antimonide (InSb) photodiodes integrated with high frequency preamplifiers [4 MHz or 50MHz depending on detector size and gain] which respond in the spectral range from visible to 5.4 um (1900 cm-1 to 6000 cm-1). These detectors are available in 2mm, 1mm, 0.5mm, 0.25mm and 0.1mm sizes and ...

Specifications

Material: Other
Spectral Range: 1600-5400nm
Effective Aperture: -- mm
Mounting: Mounted or Unmounted
Data Sheet
Extended InGaAs Photodiodes
GPD Optoelectronics Corp
Extended InGaAs Photodiodes

Specifications

Material: Extended Range InGaAs
Spectral Range: 1000-2600nm
Effective Aperture: N/A mm
Mounting: Mounted or Unmounted
Data Sheet
InGaAs Thermoelectric Cooled Photodiodes
GPD Optoelectronics Corp
InGaAs Thermoelectric Cooled Photodiodes

Specifications

Material: Indium Gallium Arsenide (InGaAs)
Spectral Range: 1000-2600nm
Effective Aperture: N/A mm
Mounting: Mounted or Unmounted
Data Sheet
High Performance Balanced Photodetector (BPD-1)
Insight Photonic Solutions Inc
The BPD-1 differential photodetector is a DC to 400 MHz dual balanced photodetector optimized for swept source OCT (SS-OCT) imaging systems.  By careful design, the BPD-1 supports high speed SS-OCT, minimizing factors that other detectors do not even specify, such as harmonic distortion and group delay.  Importantly, with ...

Specifications

Material: Indium Gallium Arsenide (InGaAs)
Spectral Range: 950-1650nm
Effective Aperture: N/A mm
Mounting: Mounted
Data Sheet

Frequently Asked Questions

A Calibrated Photodiode is a highly accurate light detector that has undergone calibration to provide precise measurements of optical power or intensity in a specific wavelength range.

Calibrated Photodiodes are typically calibrated using traceable standards and calibration equipment to ensure accurate and reliable performance. The calibration process establishes a known relationship between the optical power incident on the photodiode and its electrical output.

Calibrated Photodiodes offer highly accurate and traceable measurements of optical power or intensity. They are commonly used in research, metrology, and other applications where precise light measurements are crucial.

Yes, many suppliers provide calibration certificates with Calibrated Photodiode purchases. These certificates document the calibration process, traceability, and measurement uncertainties, ensuring confidence in the detector's performance.

Consider factors such as wavelength range, responsivity, power range, and desired measurement accuracy when selecting a Calibrated Photodiode. Choose a photodiode that matches your wavelength of interest and meets the requirements of your specific application.

There are 7 different Calibrated Photodiodes from suppliers and manufacturers listed in this category. In just a few clicks you can compare different Calibrated Photodiodes with each other and get an accurate quote based on your needs and specifications. Please note that the prices of Calibrated Photodiodes vary significantly for different products based on various factors including technical parameters, features, brand name, etc. Please contact suppliers directly to inquire about the details and accurate pricing information for any product model. Simply navigate to the product page of interest and use the orange button to directly reach out to the respective supplier with one click.

Did You know?

Did you know that Calibrated Photodiodes offer precise and traceable measurements of optical power or intensity? These highly accurate detectors have undergone calibration using traceable standards and calibration equipment. The calibration process establishes a known relationship between the optical power incident on the photodiode and its electrical output, ensuring reliable performance and measurement accuracy. Calibrated Photodiodes find extensive use in research, metrology, and other applications where precise light measurements are crucial. When purchasing Calibrated Photodiodes, you can often obtain a calibration certificate that documents the calibration process, traceability, and measurement uncertainties associated with the detector. This certificate provides confidence in the detector's performance and serves as a reference for calibration traceability. Whether you need accurate optical power measurements for research experiments or metrology applications, Calibrated Photodiodes are an excellent choice to ensure reliable and precise results.
