REP1953-DM-B: Stabilized Narrow-Linewidth Laser Diode 1950-2150nm
Description

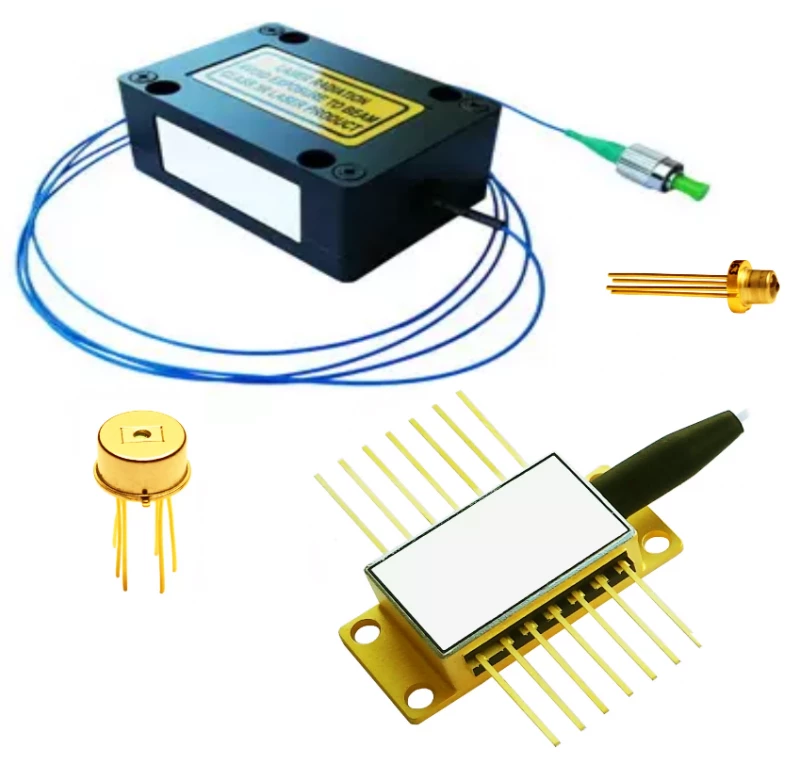

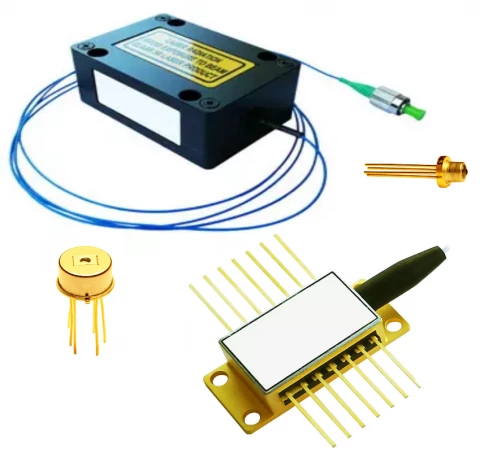

The REP series includes high-performance, tunable, single-frequency (DFB-like) diode lasers and Fabry-Perot laser diodes in wavelengths from 1270nm thru 2350nm, designed to address challenges in Gas Sensing, LIDAR, Spectroscopy, and Telecom. The REP series includes high-power and narrow linewidth options, covering various product ranges at the most popular wavelengths, and providing customizable units with multiple packaging options, including the Fiber coupled 14-pin butterfly, TO39 (w/TEC), and TO56.
Benefits:
- Discrete-Mode manufacturing technology provides industry-leading performance and fully scalable, consistent production and integration capability.
- Highly customizable units with several package options enable customers to choose the right product for their specific needs.
- High-power and narrow linewidth options allow customers to optimize performance for their particular applications.
- Various product ranges at the most popular wavelengths provide customers with a wide range of options to choose from.
REP1953-DM-B: Stabilized Narrow-Linewidth Laser Diode 1950-2150nm
Specifications |
|
|---|---|
| Center Wavelength: | 1.953 um |
| Output Power: | 1.25 mW |
Features
- Integral TEC
- PM/SMF Coupled with FC/APC
- Built-in Optical Isolator
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The REP1953-DM-B laser diode is designed for Gas Sensing, LIDAR, Spectroscopy, and Telecom applications.
The benefits of the REP1953-DM-B laser diode include industry-leading performance, customizable units with multiple packaging options, high-power and narrow linewidth options, and various product ranges at the most popular wavelengths.
The absolute maximum ratings for the REP1953-DM-B laser diode include Forward Current, Forward Voltage, TEC Current, Reverse Voltage LD, Case Temperature, Chip Submount Temperature, and Storage Temperature.
The REP1953-DM-B laser diode is a Class 3R Laser Product as defined by International Standard IEC 60825-1, Edition 2.
The standard package pinout for the REP1953-DM-B laser diode is the 14-pin butterfly package with the "Pinout 06" option. Other packaging options are available upon inquiry.
